Hampton Bay Ceiling Fan Wiring: Step-by-Step Guide Explained with Diagrams

If you’ve followed our Hampton Bay series, you must be familiar with the latest Home Depot trend of DIY maintenance. This trend encourages Americans to learn the basics of installing and troubleshooting electronics and helps them cut back the cost of hefty repair bills. Wiring and handling heavy appliances may sound scary at first. Well, there’s no denying it, as it can sometimes be horrible. However, following safety guidelines and carefully connecting wires is all the trick.

This blog post is all about helping you put your hidden technical expert into action. So, if you have made up your mind to experiment with your Hampton Bay Ceiling Fan Wiring and discover the different wire colors, then stick out till the end because we have amazing content coming your way.

Acquaint Yourself with Ceiling Fan Cable Colors:

Alright. Let’s jump into the blog post with the topic of Hampton Bay Ceiling Fan wires. We know that almost every electrical appliance in our household works with the meshwork of electrical cables, and a ceiling fan is no different. However, the ceiling fan wire color variety makes it stand out amongst the others. And I bet most of you are unfamiliar with the ceiling wire colors. Aren’t you? Before you rush to google the colors. Hold on, my friends, because we have included the wire colors and the purpose of colored cables in this section.

So, first, I want to highlight that a basic Hampton Bay Ceiling Fan model commonly has four different cables in it. However, the presence of an additional color cable is not unusual.

The colored cables wired to the house:

• The black wire, or the hot wire, is the backbone of the Ceiling Fan circuit that connects the fan with the switch outlet.
• The neutral white wires direct the additional electricity to the breaker box and maintain a closed electrical path.
• Green wires are insulated cables that keep the fan from the consequences of overvoltage.
• A blue or black wire protruding from the domestic circuit indicates the presence of two wall switches.
• Red wire, considered a secondary hot wire, is commonly used for switch-operated fans.

The colored cables attached to the fan:

• Black wires are exclusively employed in stabilizing fan circuitry.
• Blue cables are connected to a fan for installing a light kit assembly.
• White wire, like the nature of the color, is neutral.
• Green lines are connected for the purpose of grounding.
• The mighty red cables double as conductors to supply electricity to the light kit assembly.

Gear up to Wire a Ceiling Fan:

Before you ignite your inner technical expert and open a ceiling fan, know you must learn a few safety measures ahead. Because successful wiring is all about the safe handling of cables, in this section, we will get to the bottom of a few basic and unneglectable safety measures that lay the groundwork for safe and secure wiring. So, let’s get started.

• First, you should immediately turn off the power from the mains. For this, rush off to your garage or basement and locate a grey color box with multiple trip switches. Identify the relevant switch by the labels on the fuse and flip it down to shut off the power supply to the fan.
• If you are unsure about the power panel switches, make sure to schedule a call with a skilled technician. This consultation session prevents you from drifting into the arms of scary electrical malfunctions.
• Cautiously strip off the insulating coat on the wire, approximately 1cm (about 0.39 in) from the margin to bare the copper ends.
• Unused bare wires are an open invitation to death, so ensure all the additional cable ends are secured with a cap or wire splice.
• Check the ceiling fan packaging for wire nuts and durable push connectors. Both these units are vital for the secure wiring of the ceiling fan.
• Color-coded wires streamline the wiring process. However, some manufacturers have designed different color codes for their articles. Your best bet is to refer to an instructional manual and follow the guidelines given carefully.

Installing a Fan or Light with Pull Chain Assembly:

Pull chain fans look adorable. Don’t they? But these elegant models are difficult to maintain because the flimsy chain can pull out anytime. However, deliberate wiring and secure connections can go a long way in keeping the fan operational. We have provided a basic diagram for pull chain fan wiring that works well without a switch. To put it simply, you will be activating the fan, or the light kit set by pulling down the delicate chain. So, let’s learn the secure wiring process for a pull chain fan assembly.

Alright, remember the wire color codes we discussed in the first section? If you don’t, give it a quick review because we will elaborate on it here.

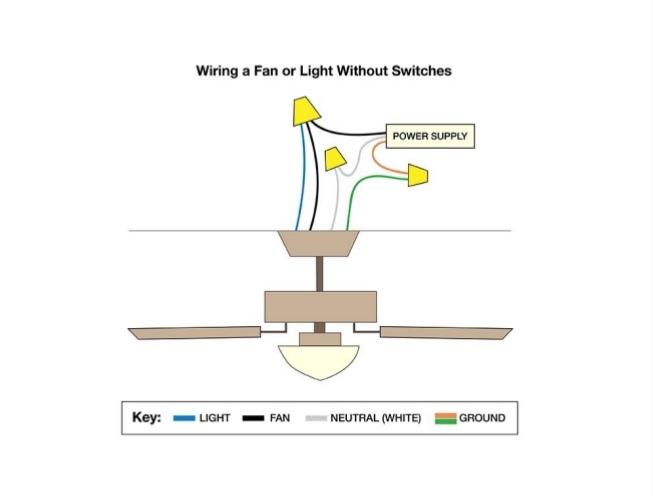

• First, you will secure the white or the neutral ceiling fan cables with the white ceiling cables.
• Next, you will engage the green sheathing cables with household earthing wire or ground bus.
• Then, the black wires are connected and wrapped in an electronic tape.
• Afterward, you will secure the blue-coded wires with either blue or black wires for a light kit installation. Even if you don’t have a light kit on the ceiling fan, follow this procedure for light kit assembling in the future. Because who knows when you will change your mind.
• Once all the connections are made securely, you will fold down the wire cluster in the ceiling fan housing.
• Finally, you will turn on the switches on the power board and test if the fan works.

Installing a Pull Chain Fan with Switch Operated Light:

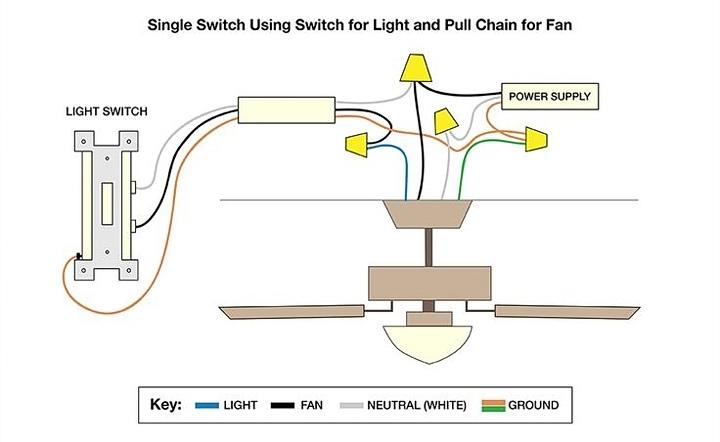

Most of us prefer this adjustment for our ceiling fan. When ceiling fans are operated with pull chains and light kit adjustments are controlled with switches, So, if you want to install a ceiling fan with a light kit on your own, then the section of the blog post has got you covered.

In this scenario, electrical connections can be a little tricky and different, as discussed previously. So, listen attentively, folks!

• The neutral white wires are wrapped in insulating layers of electronic tapes to distinguish them from hot wires. For a switch-operated light kit, an additional coded wire, usually red, is used between the switch and the fan to deliver power to the light kit and manage light intensity from the switch.
• Once the red wire is inserted into the circuit, you will carefully engage the green wires with the household grounding cable.
• Then, you will secure the insulated neutral wires using a wire nut.
• Next, you will connect the red ceiling cables with light kit black wires, and the black ceiling wires are secured with black ceiling fan cables.
• Once all the connections are done, the connected wires are fitted into the fan housing.
• Finally, you will turn on the switches on the distribution board, and congratulations, you have successfully installed a fan with a light kit.

Installing Ceiling Fan and Light Actuated with a single switch:

This wiring setup has adjustments that allow the fan and light kit operations to be handled by a single switch on the wall. Moreover, you will not need to reach the pull chains to operate the fan. In my opinion, these adjustments are appropriate for the drawing and dining areas because you need both good light and refreshing airflow to entertain your guests there. Don’t you?

So, what electrical connections are required for my Hampton Bay ceiling fan and light kit to function with a single switch?

• First, you will secure the green sheathed cables or stripped copper wires with the same cable category.
• Then, you will engage the neutral wires together.
• Next, you will connect the black cables together and wrap the junction point with insulating tape.
• Afterward, you will secure the light kit blue cables with ceiling fan black wires.
• Once all the electrical connections are established, the connected wires are tucked back in the housing.
• Finally, the power panel switches are flipped up, and the fan is tested.

Installing Ceiling Fan and Light Actuated with different switches:

Now, this separate switch option is great for your bedrooms and kitchen. Where you want the light and fan to operate separately, you can adjust the fan speed without turning on the lights. If that’s not impressive enough, don’t worry; we have not finished yet. Additionally, you can install a dimmer for your light kit if you want. Before we dig deep into the details of electrical connections, here’s a cycle you need to understand.

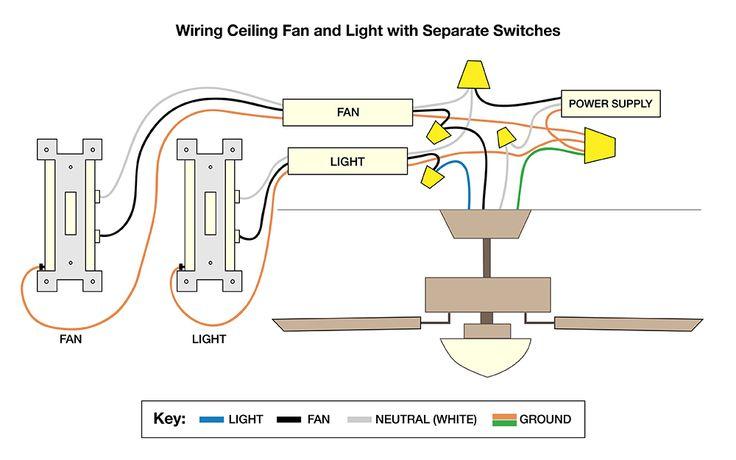

As the diagram depicts, the wall circuit is controlled by three color-coded wires. These switches are powered by the main supply line, usually a black wire, and the switches, in turn, feed the fan or the light.

For connecting the fan and light to separate switches, three different coded wires from the circuit arrangements are connected with the light. If you want to upgrade your previous fan settings to two switch arrangements, you should withdraw the red wire from the box and use it to supply power to the light kit.

But what should you do if it’s your first experience of installing separate switches for the fan and light kit? In that case, you will hook up the switch box with the ceiling junction box with an additional wire. You might also want to employ a new run of three conductive cables. (Categorized as “14-3”- don’t hold back from checking the color code for a particular gauge.)

So, the question remains of connecting the remaining coded cables.

• First, you will link the black fan cables with black wires in the ceiling.
• Then, you will engage the blue cables with red wires.
• Next, the neutral white cables are attached, and the junction is covered with electronic tape.
• Finally, you will carefully secure the stripped margins of green wires.

Connections in the switch box:

• First up, you will insert and connect a hot wire to a terminal on each switch by partitioning the cable into a Y configuration.
• Then, you will link the black cable to the bolt positioned in switch No. 1.
• Next, you will attach the red cables to the switch No. 2 screw and make sure that it is engaged securely.
• After the red wires, you will connect the neutral white cables.
• Then, you will combine the stripped green or copper cables and wrap them in an insulating coverage.
• Once all the secure connections are established, the wire cluster is tucked back in the housing.
• Finally, the fan is turned on and tested.

Installing a Remote-controlled Ceiling Fan:

As a civic-minded and revolutionary firm, Hampton Bay has designed and crafted many home accessories that, along with uplifting your interior setup game, also boost comfort. I don’t know about you, but if you ask me about my favorite Hampton Bay home accessory. I would say that it’s Hampton Bay’s sleek and stylish fans with a remote control feature because pregnant mommies-to-be and my dear disabled fellows can conveniently handle the fan movements with the remote from any corner of their space.

The remote-control option operates the fan by signaling a receiver fitted in the ceiling fan casing. While the remote will rest sluggishly in the remote case on the wall unless you need it.

To hook up your remote with a ceiling fan, you will need to follow the following steps:

• First up, you will flip down the switches on the power distribution board to ensure your safety while installing a remote-controlled ceiling fan.
• Then, you will examine the remote receiver for DIP switches and an array of push buttons once the remote receiver is examined. An appropriate battery is introduced in the battery section.
• Once the ceiling fan is installed on the ceiling, you will gently push and adjust the remote receiver in the gap above the metal down rod.
• Next, you will attach and wrap analogous cables of the fan with a remote. And don’t hold back from double-checking.
• Finally, you will turn on the power supply and see if the fan works with the remote.

Appropriate Tools and Orange Safety Tips:

Whether you are a doctor, a professor, or a soldier, you can’t deny the importance of initial preparations for accomplishing your day-to-day tasks. The same goes for wiring projects. So, before you get up to wire a ceiling fan excitedly, Stop right there. Take a deep breath and take a tour of your tool pantry in the basement.

These are the following tools that you will need in your ceiling fan wiring:

• Screwdriver for tightening screws and preventing any electrical hazards.
• Wire strippers for stripping off wire edges and making secure connections.
• Electrical tape for wrapping the wire junction in an insulating coverage.
• Voltage tester to ensure safe wiring.
• Ladder to reach the ceiling.

Some additional tools that you might need as a backup are wire connectors, needle-nose, and pliers.

Remember folks! Your safety is in your hands, so ensure all the possible safety measures when you deal with electronics because any mismanagement can end you in a grave.

Safety considerations:

Here are a few safety considerations that must be followed during your wiring project:

• Ensure you cover your eyes with safety goggles and your hands with rubber gloves.
• If you plan to install multiple ceiling fans, use a separate junction box for each fan.
• Do a little research about wire codes and refer to a manual while connecting wires.
• Ensure the mounted fan is at a minimum height of 8 feet from the ground.
• Avoid overloading the fan motor by hanging unnecessary tools on the fan.

Ceiling fans are sincere partners in summer that keep you safe from the curse of scorching summer heat with their refreshing airflow. Upgrading the ceiling fan hardware and making amendments with top-notch Hampton Bay Ceiling Fan features can skyrocket your comfort in blazing summer days. So, if you plan to bring some cool fan accessories home, installing the Home Depot Mobile App and visiting the Home Depot Official Website is your way to go!
